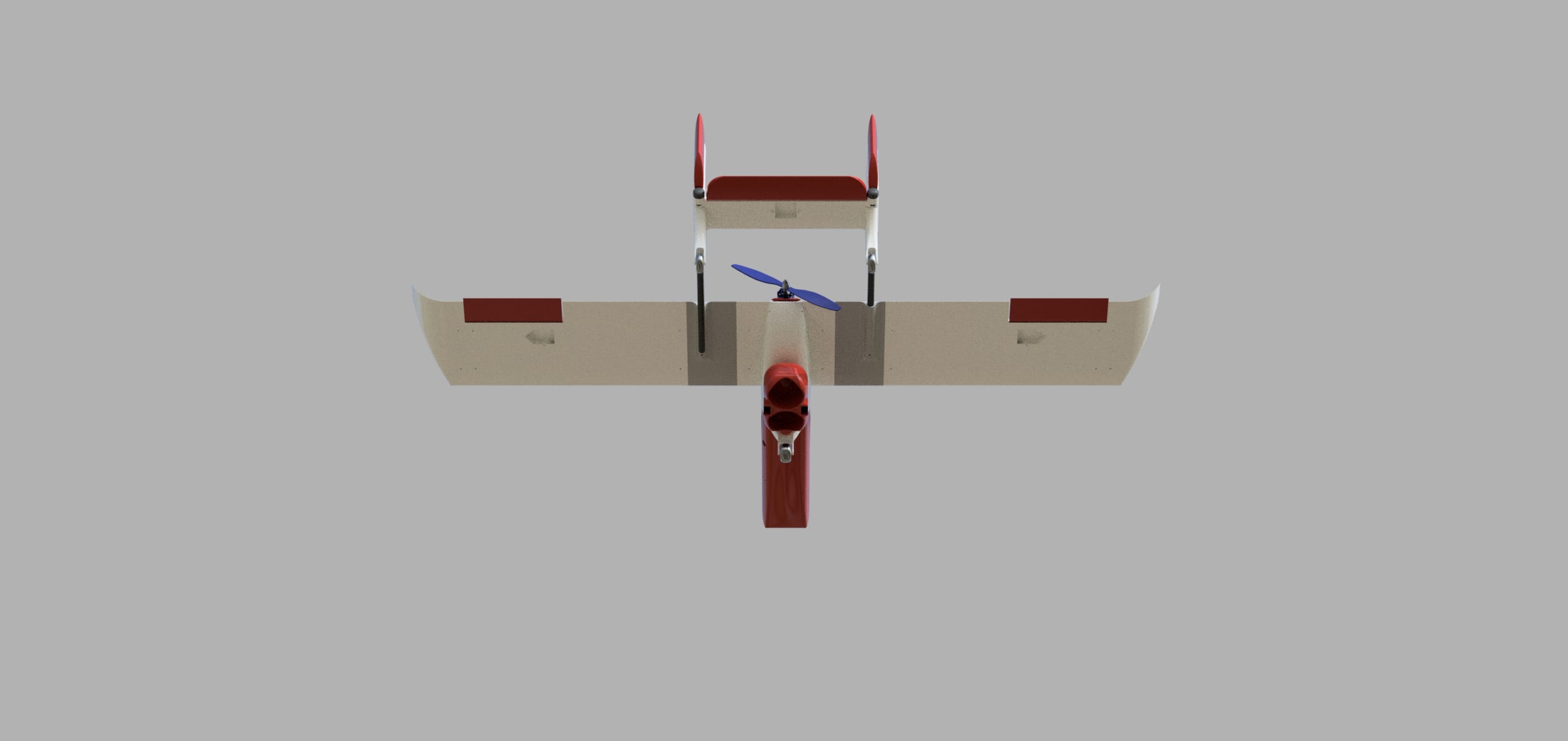

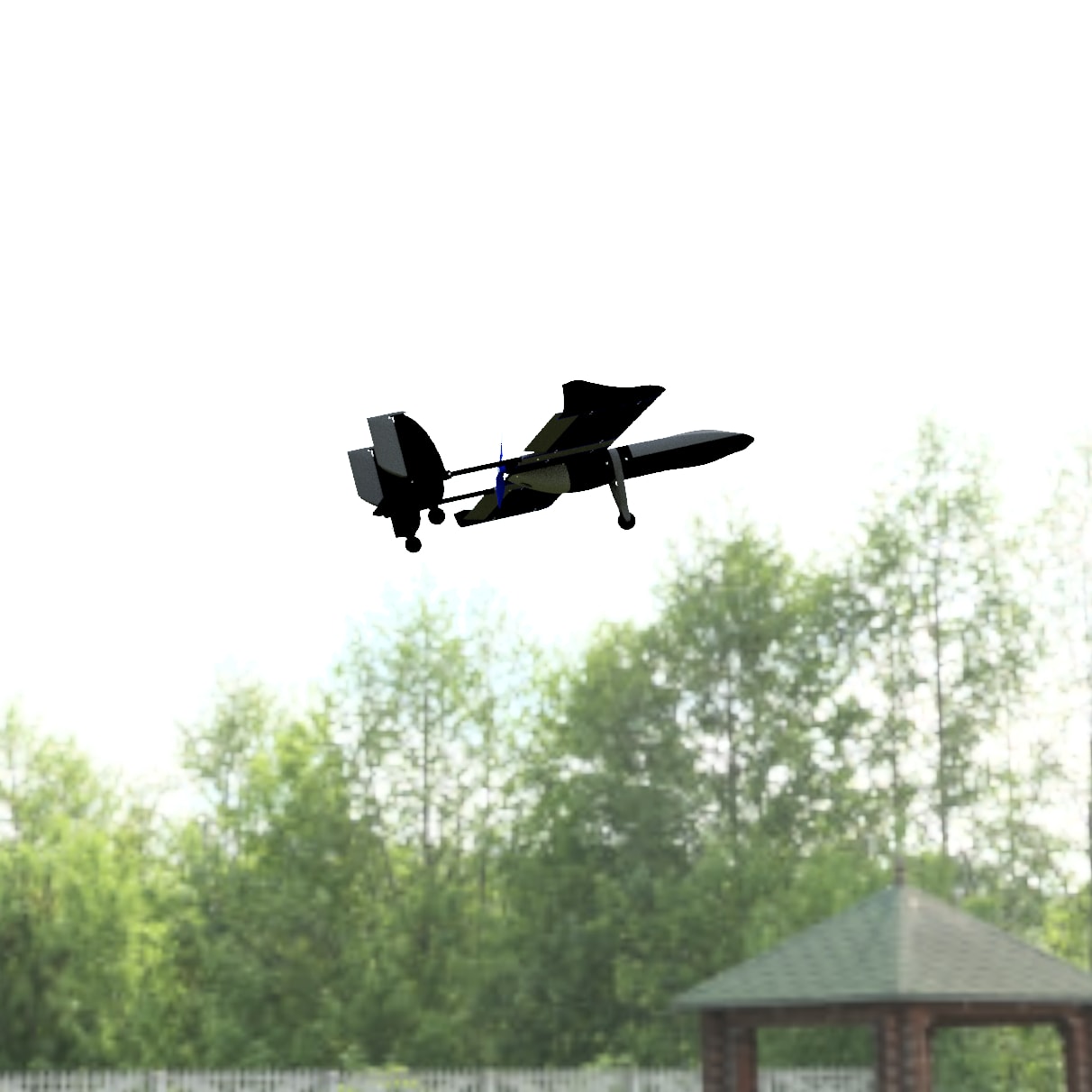

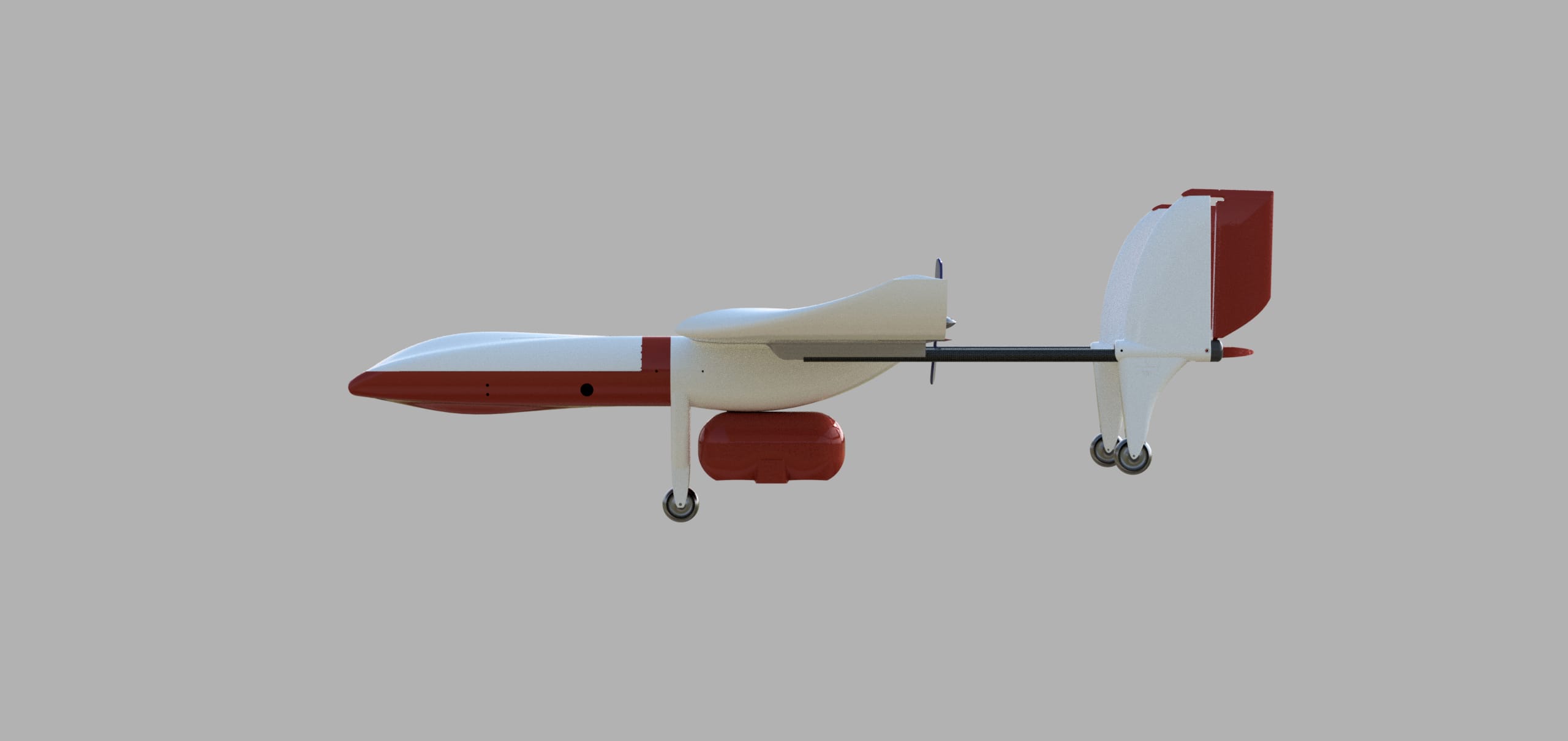

Autonomous AI-Driven Defensive Interceptor

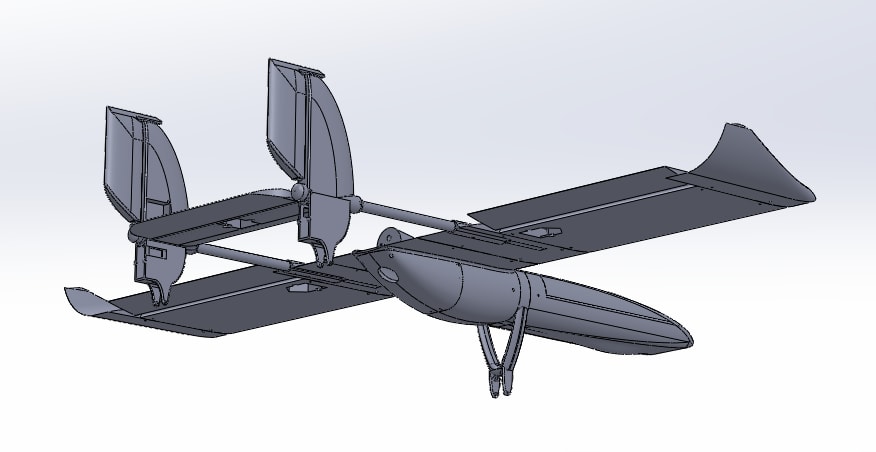

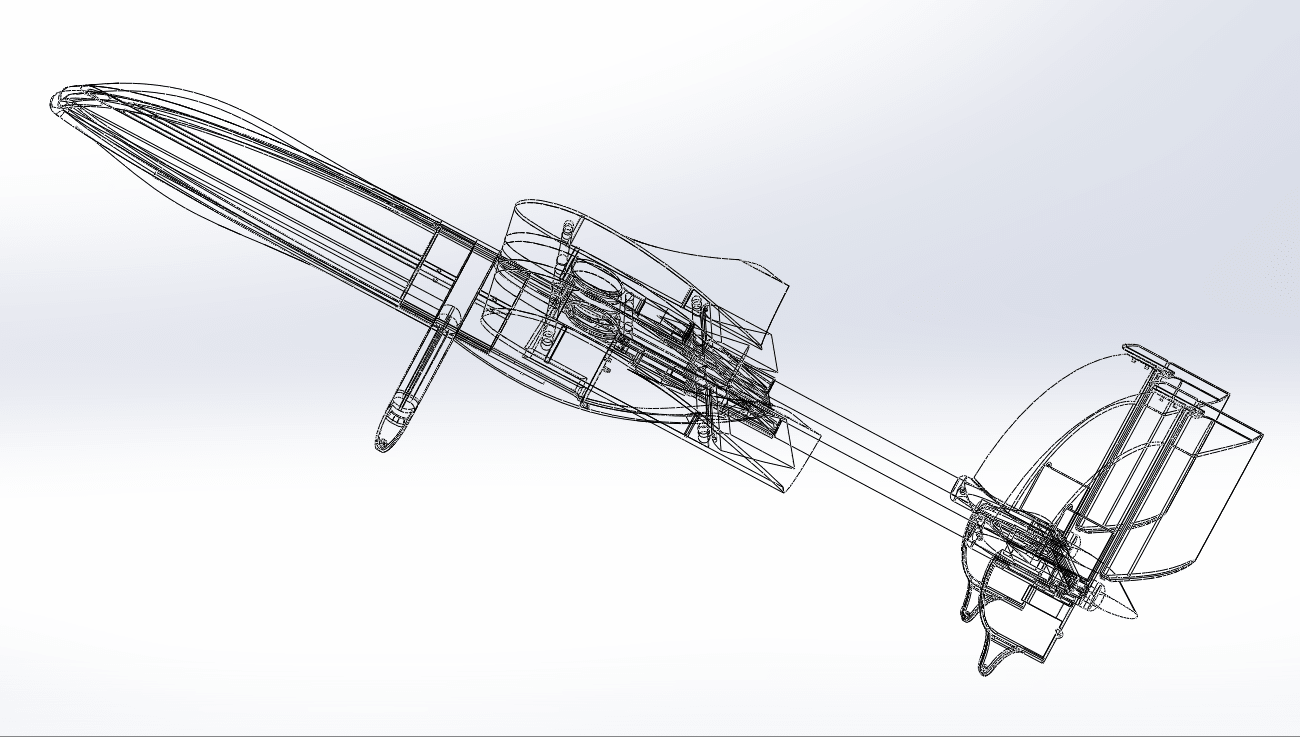

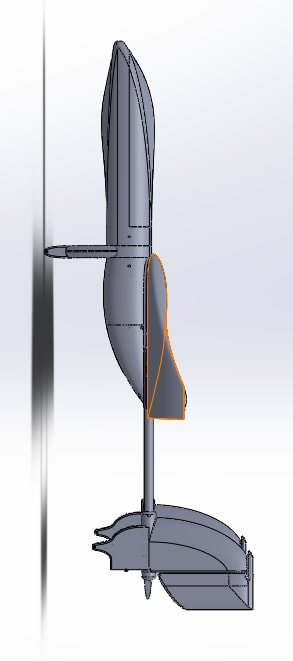

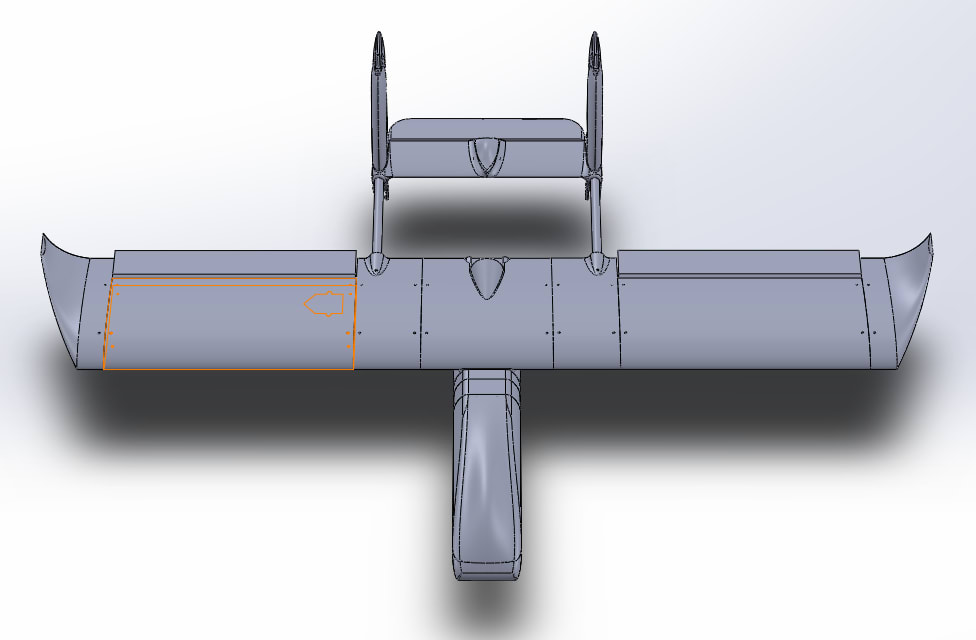

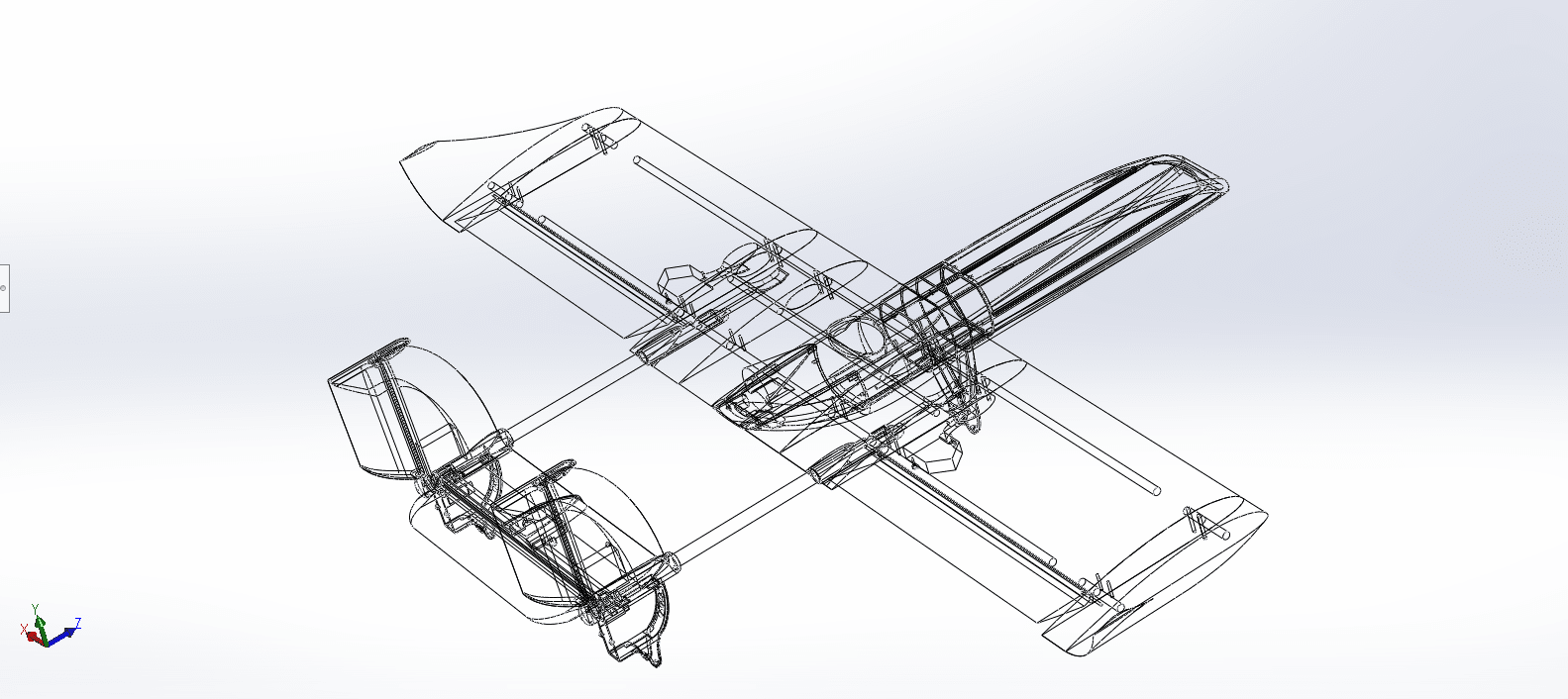

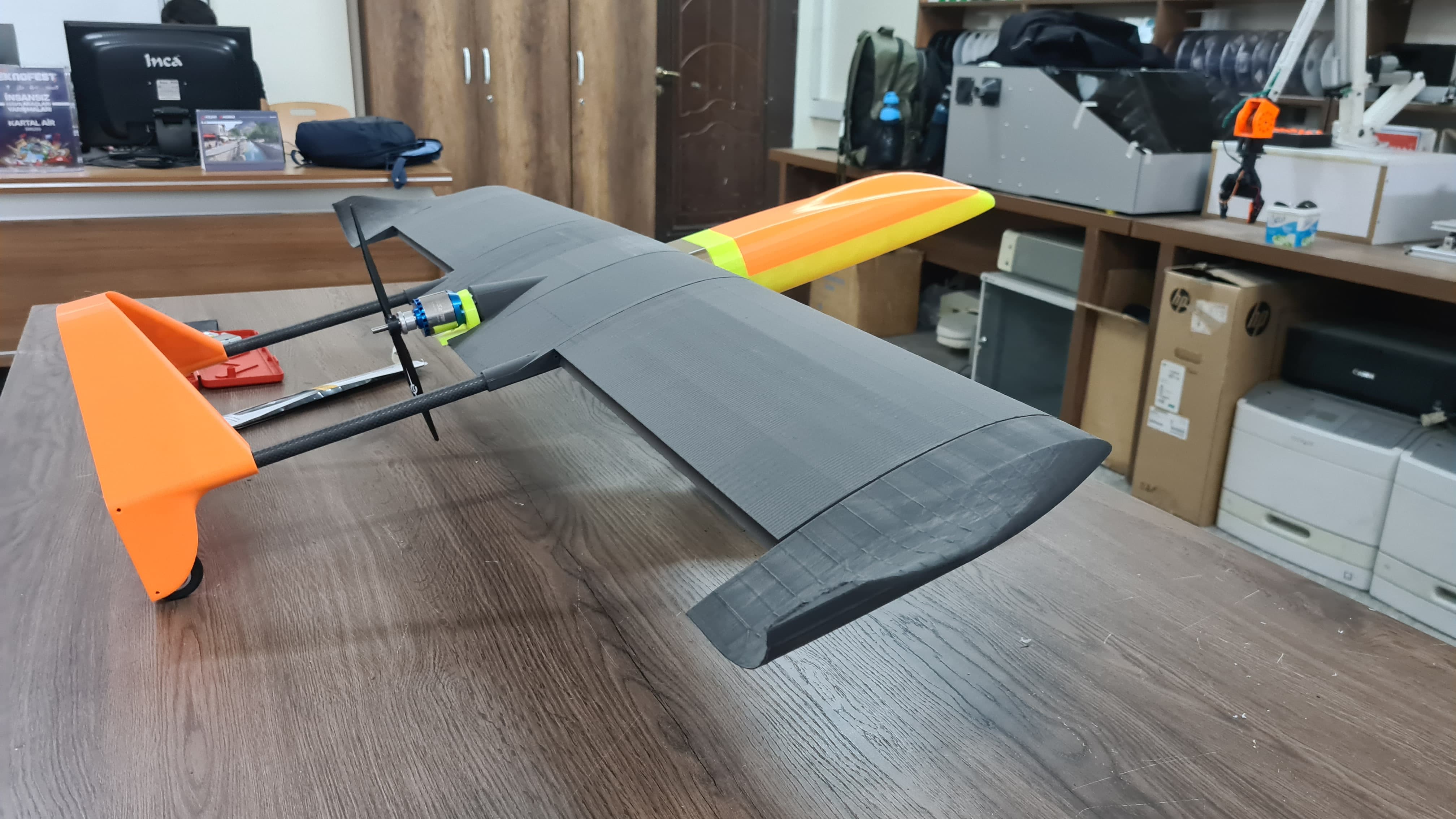

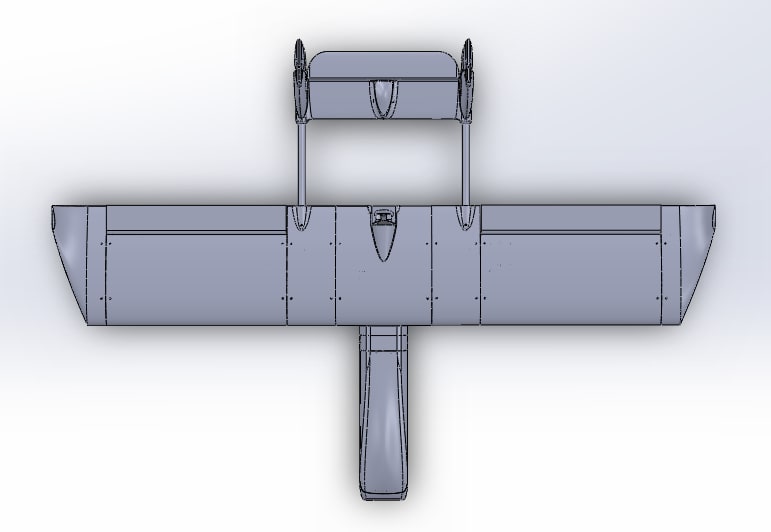

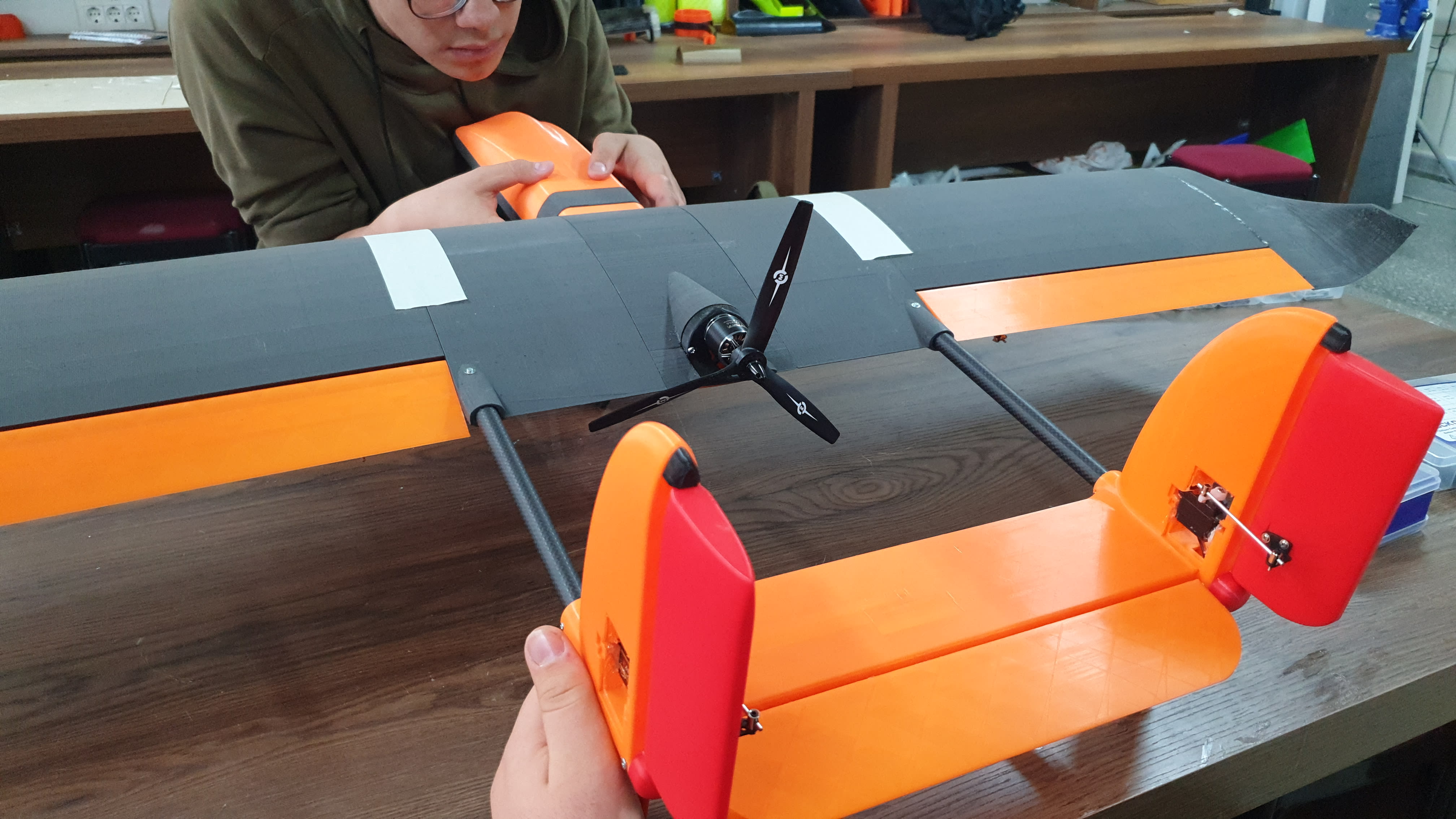

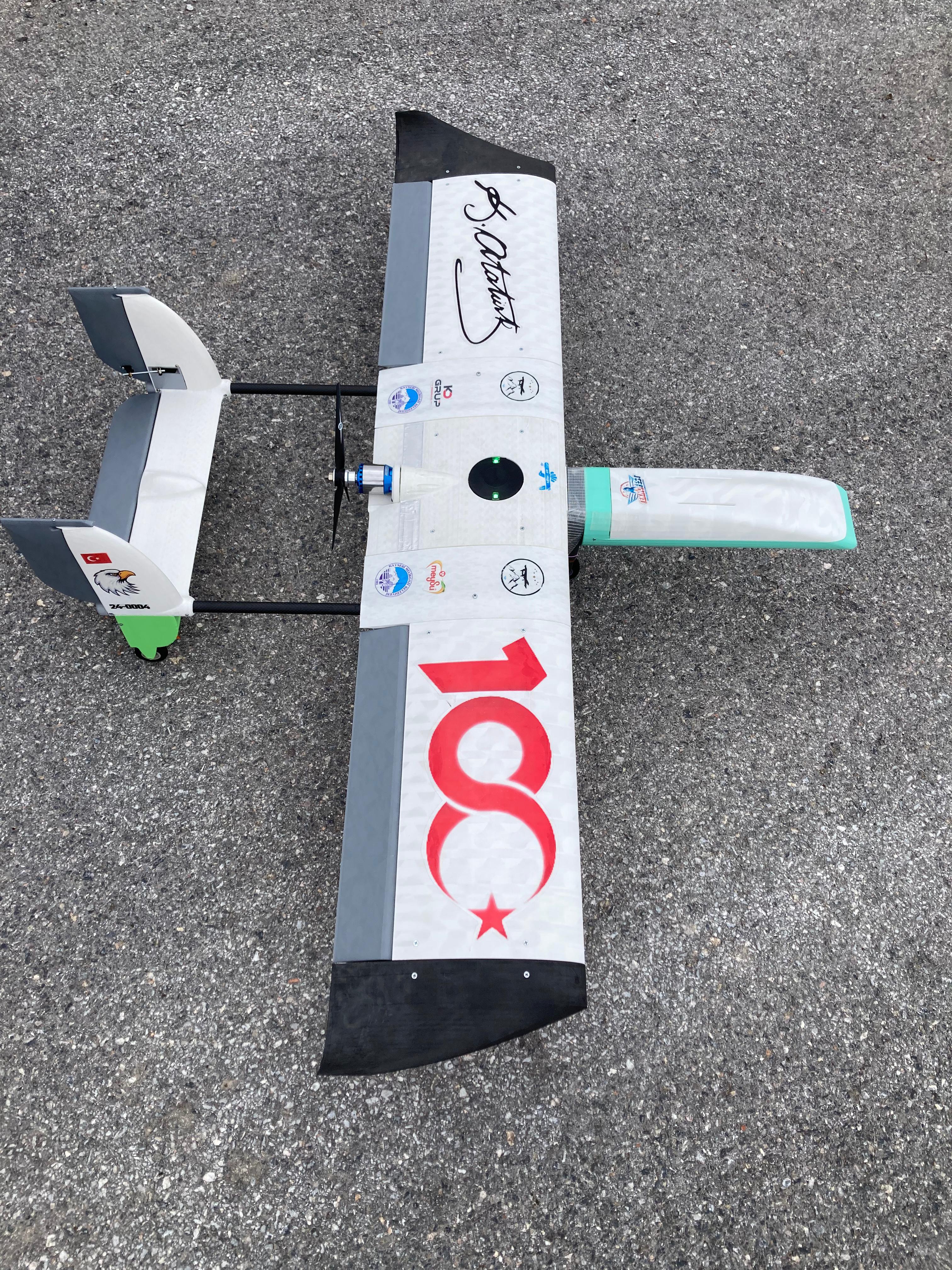

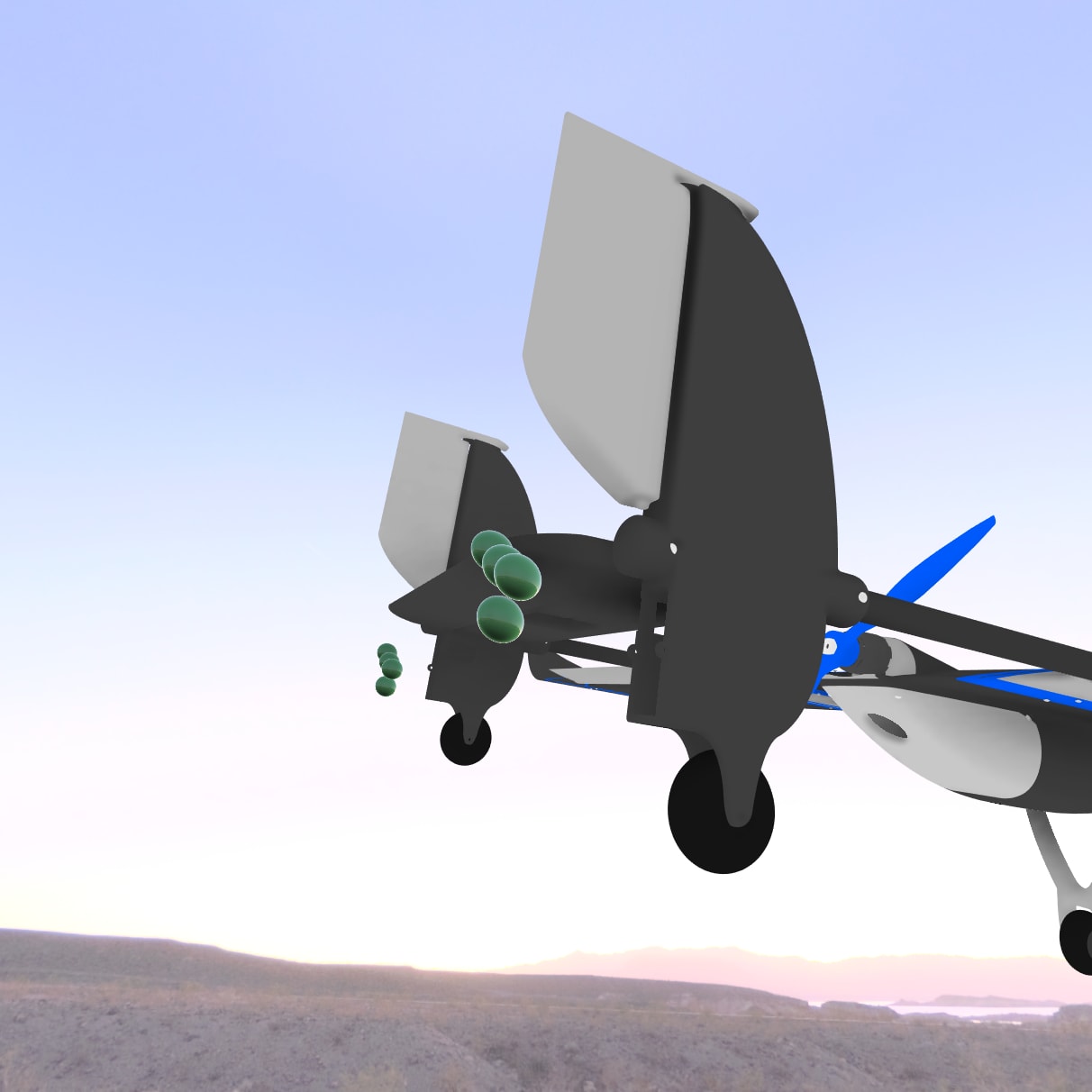

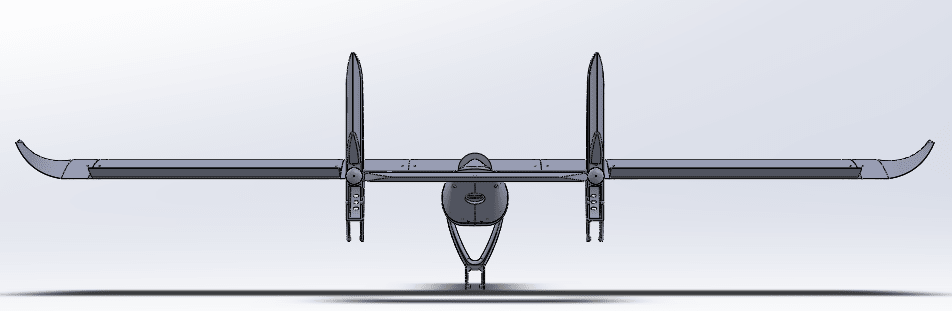

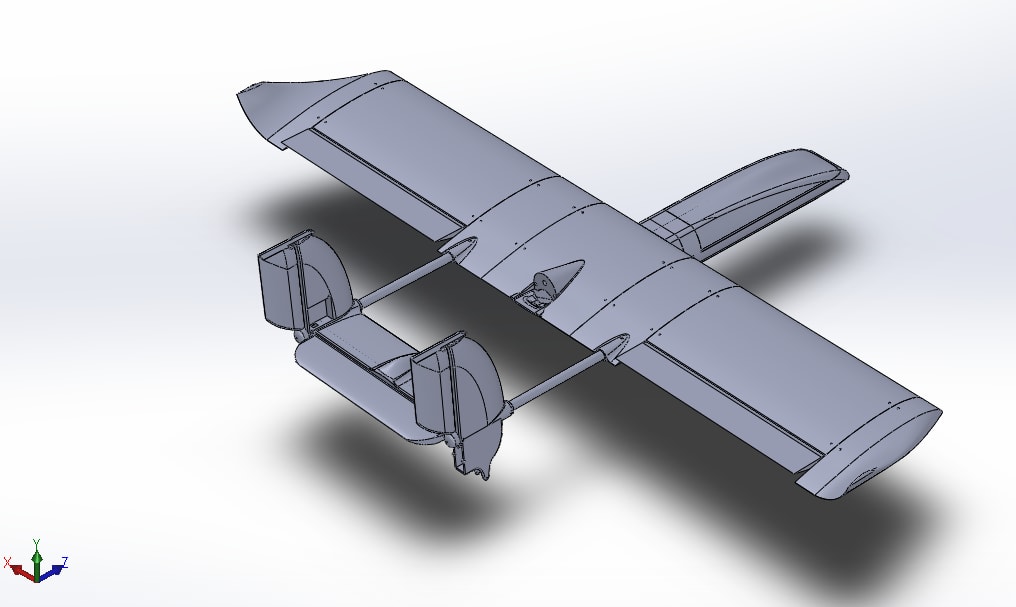

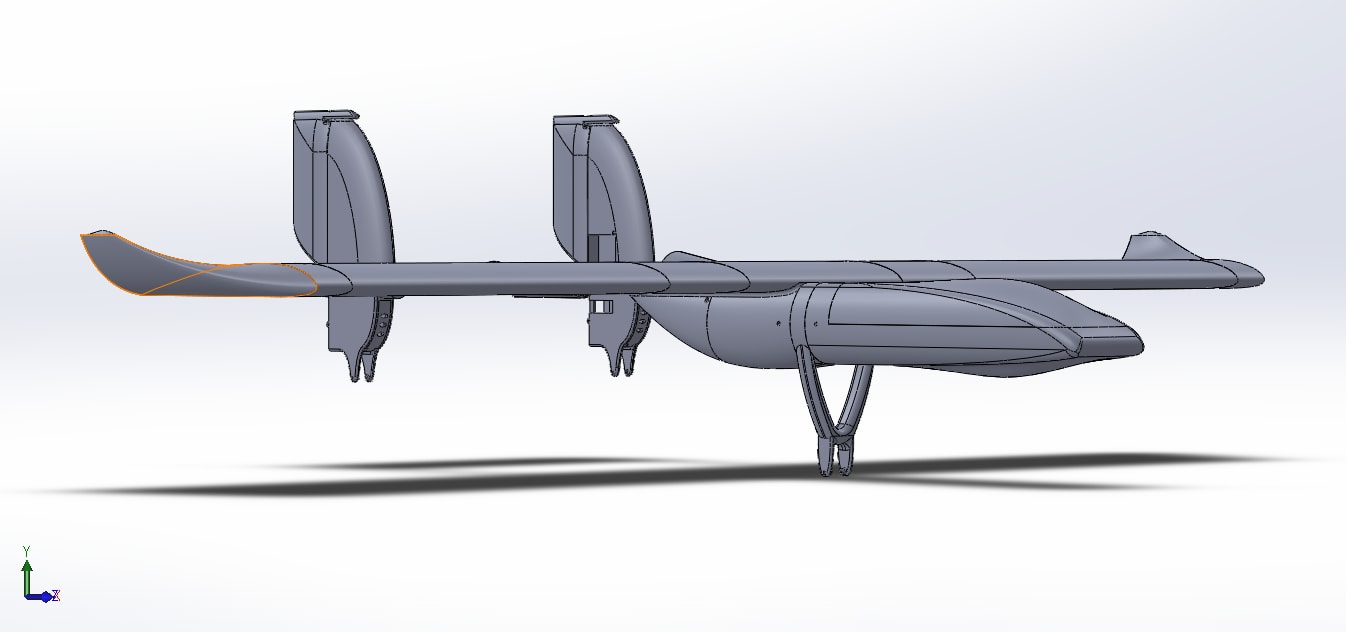

Aerodynamic Design: High-stability Clark-Y airfoil with a 58 g/dm m^2 wing loading. Features a 6 degree ground AoA for superior Short Take-Off and Landing (STOL) performance. Propulsion System: Mid-mounted brushless motor with a 4S Li-Po setup, optimized for Center of Gravity (CoG) balance and secondary airflow for the mission mechanism. Autonomous Navigation: Fully autonomous flight via Pixhawk Cube Orange+; integrated Raspberry Pi 4 for custom AI-based Identify Friend or Foe (IFF) protocols. Payload System: AI-triggered, modular defensive mechanism integrated into the landing gear, utilizing aerodynamic airflow for enhanced particle deployment range.
| Specification | Value |
|---|---|
Wingspan | 1.38 m |
Max Takeoff Weight (MTOW) | 10 kg |
Empty Weight | <16 lbs |
Cruise Speed | 55 km/h |
Max Speed | 139 km/h |
Range | 40 km |
Endurance | 55 min |
Payload Capacity | 4 kg |
Operating Altitude | 0-120 m AGL |
Propulsion System | Electric |
